How do I show or hide coordinates?

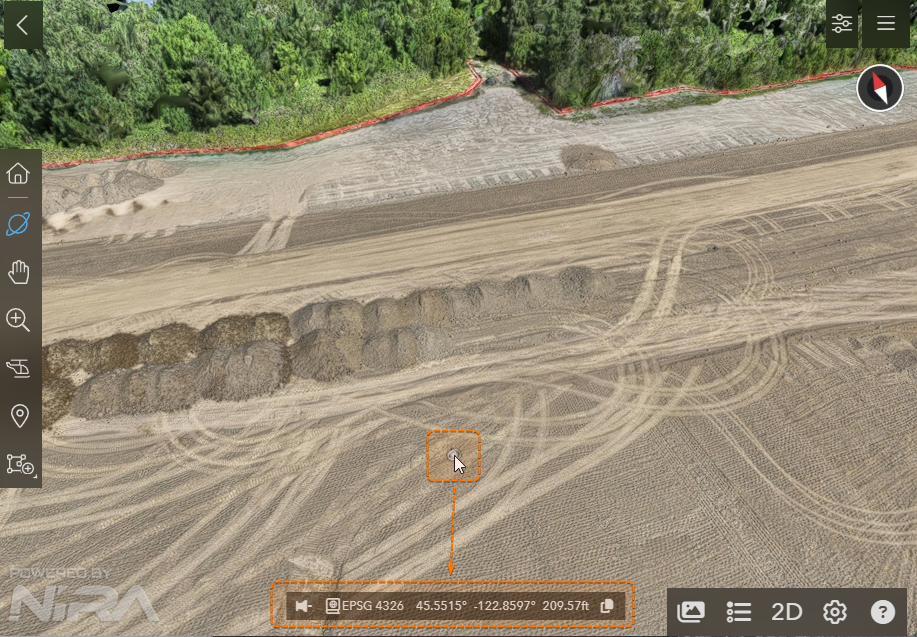

When you click on the surface or points of a model, Nira will automatically show the coordinates on screen. These coordinates will be displayed in either world coordinates (using EPSG 4326 or the coordinate system you've chosen for processing the model) or local coordinates.

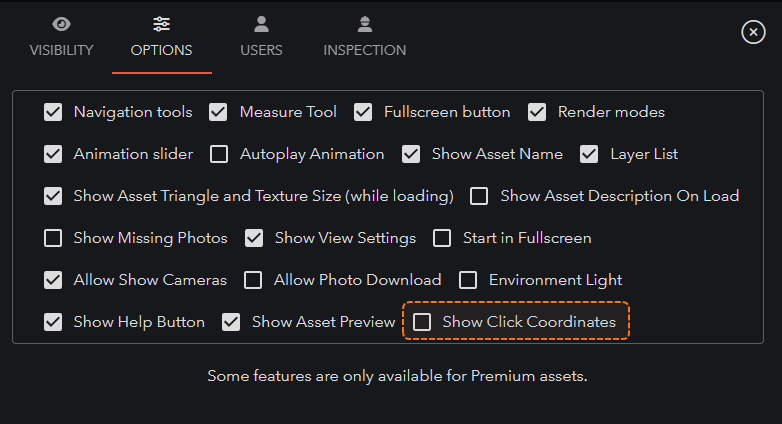

You can turn off the display of coordinates by unchecking the "Show Click Coordinates" option in the "Share..." dialog.

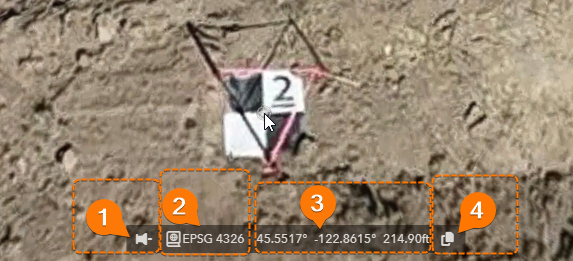

1. Choose whether you want the coordinates to stay on screen or fade away after some time
2. Switch between latitude/longitude coordinates and Cartesian coordinates
3. Coordinate values
4. Button to copy the values to the clipboard

Keep in mind that there will still be other places that will show geographic location coordinates.

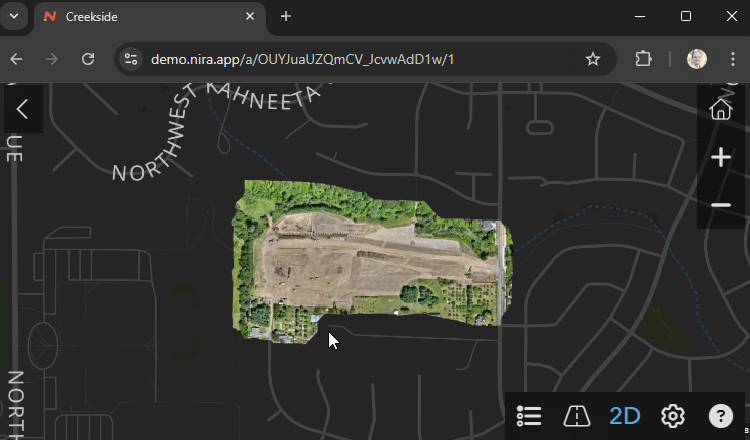

• Orthomosaic maps, if included, will overlay the asset on a world map

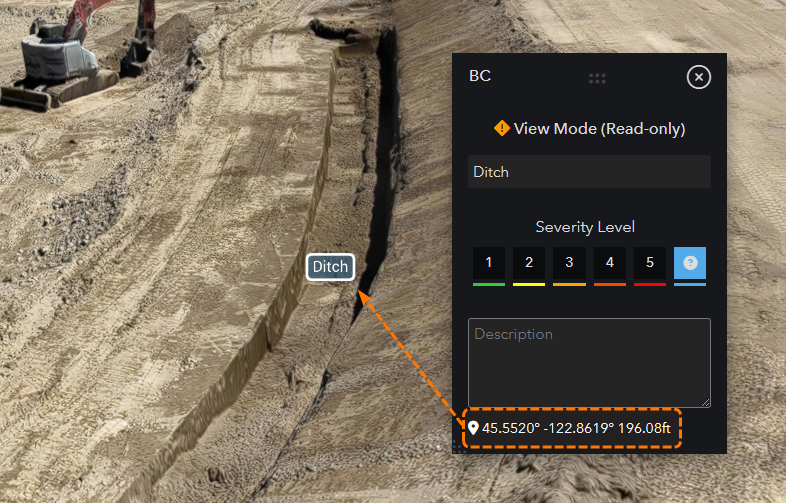

• All Callouts that are designated as Defects.  Callouts as Bookmarks or Annotations will not show  geographic location coordinates.

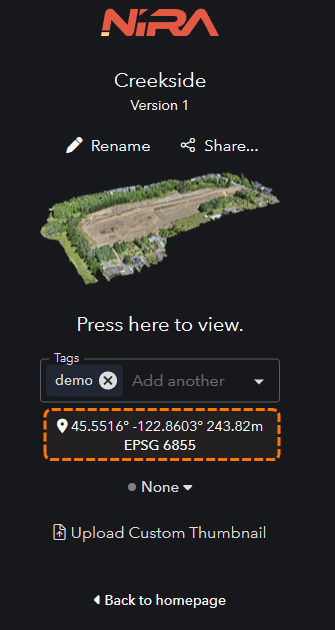

• Asset preview page for Editors (logged in users)

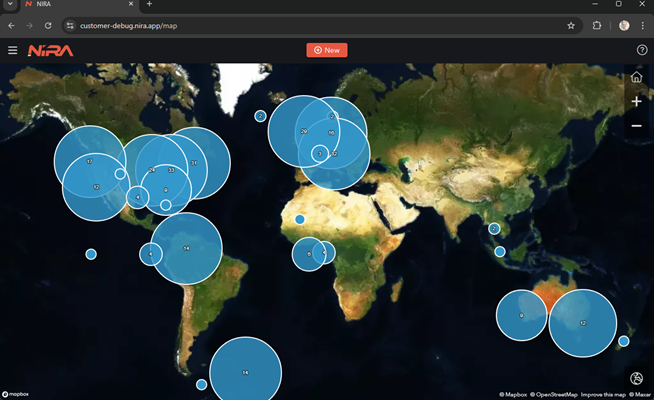

• Map View (logged in users)

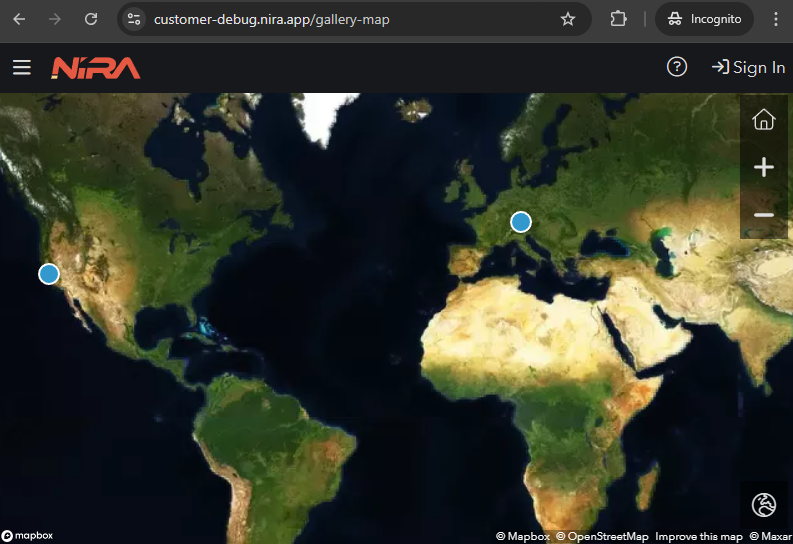

• Public Homepage Map

If you want to completely hide the geographic location coordinates, you will need to export your model using "local" coordinates.
