Edit Mode > View Options > Clipping Volume

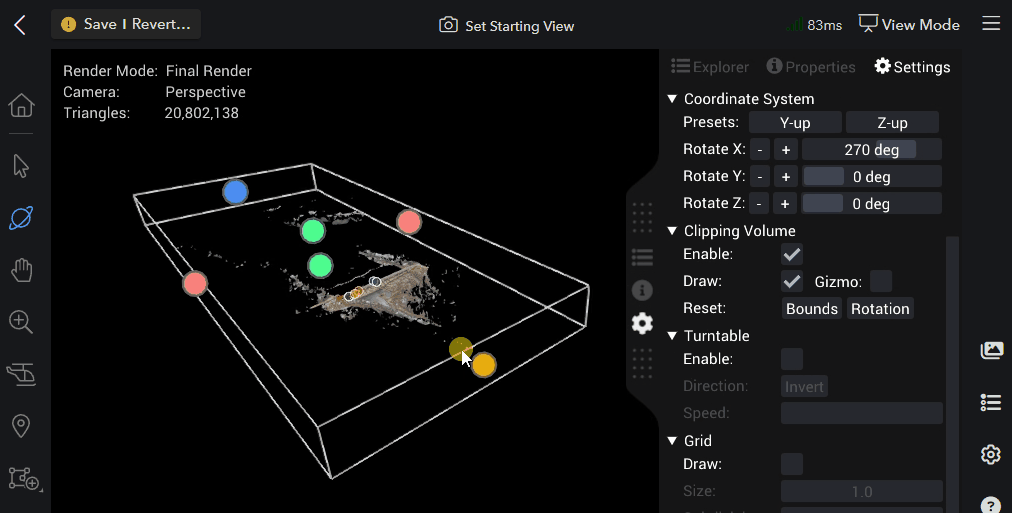

The Clipping Volume restricts your model's boundaries to the cuboid shape you define manually. You can modify the size, position, and orientation of the volume at any time using the Draw tool for adjusting the size and the Gizmo for changing its position and orientation.

When you're satisfied with the newly defined model boundaries, you can turn off the Draw feature to hide the Clipping Volume shape and colored circle adjustment handles, leaving only the model visible.

Make sure to Save to ensure that any changes you make are preserved.


Clicking the Bounds or Rotation buttons will reset the size and orientation, respectively.  These functions are particularly helpful when adjusting the Coordinate System rotation values.
