The 3D Callout Tool lets you create clickable circles or text boxes on any asset:

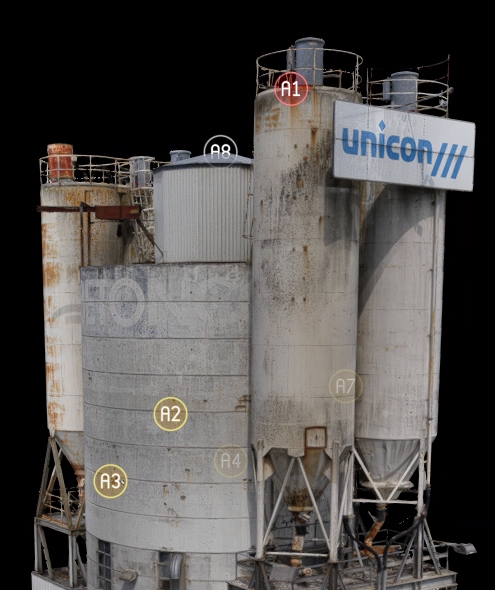

An asset with callouts

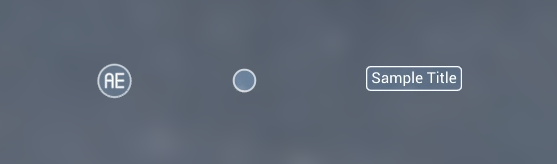

The available Callout View styles: Callout ID, Circle, and Title

To create a 3D callout

To create a callout, you must either have edit access to the asset or be accessing it through an inspection link.

1. Enter the 3D callout tool by pressing the callout tool button.

2. Click the desired location on the asset and select “Add Callout” from the menu:

3. A window will appear:

4. Use the Callout Type dropdown to select from the following:

Your choice controls what type of window is displayed when a user clicks your callout. Click the links above to learn more about each Callout type.
