Log in as an Editor, click Edit Mode

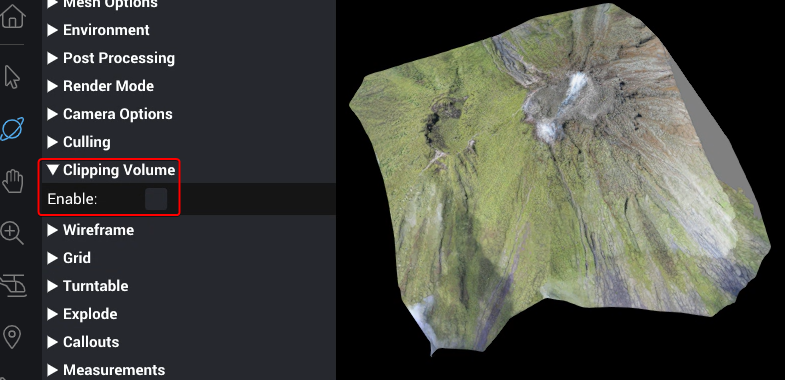

Within the View Options panel, expand the Clipping Volume section

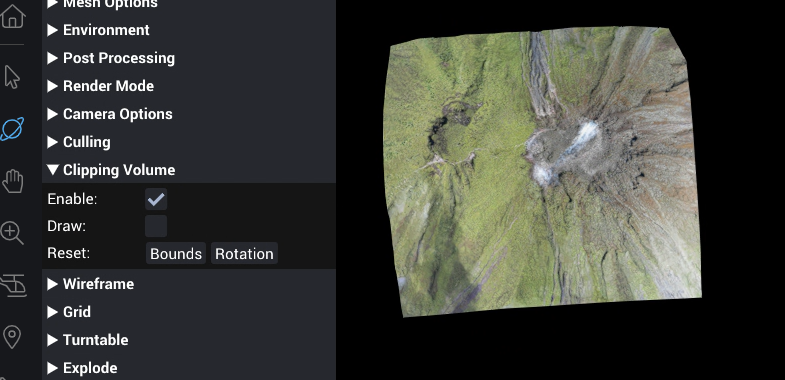

Click Enable

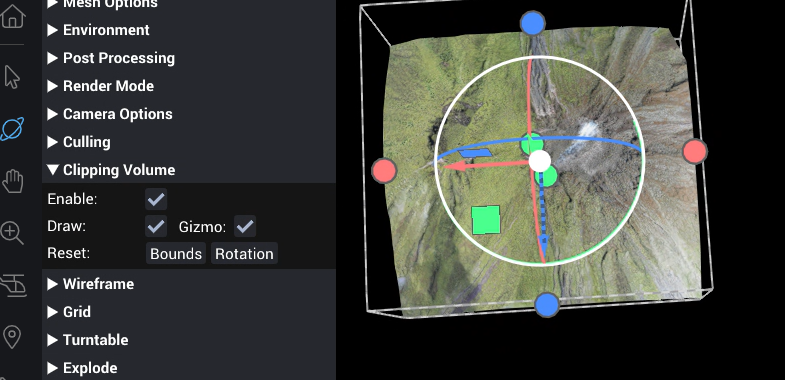

Adjust size using the filled colored circles, position using arrows and squares, and orientation using the circles.   Position and Orientation require Gizmo to be enabled.



When you're done, you can disable Draw to hide all the gizmo handles.  Leaving Draw and Gizmo enabled will allow viewers to temporarily adjust the volume size, position, or orientation.

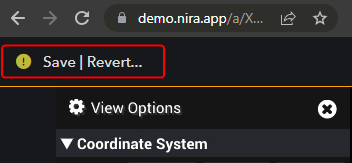

Click Save
